Product Overview

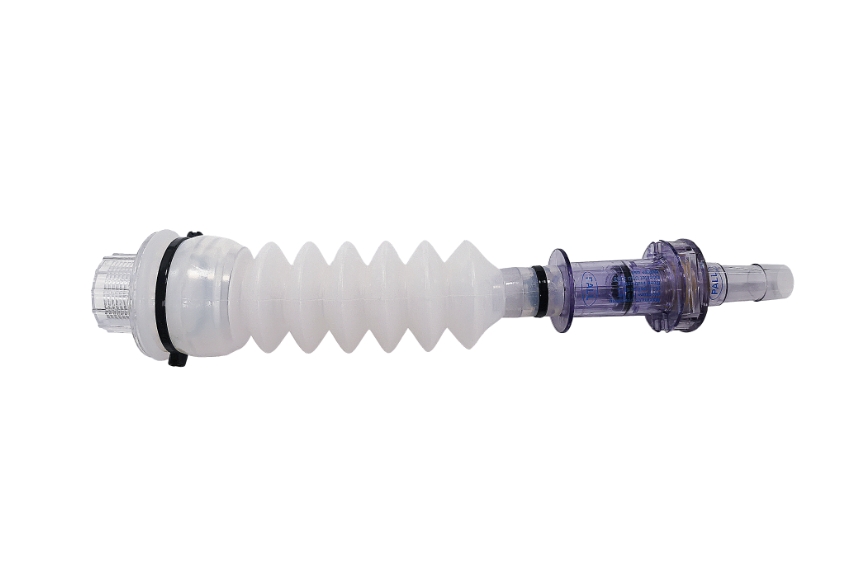

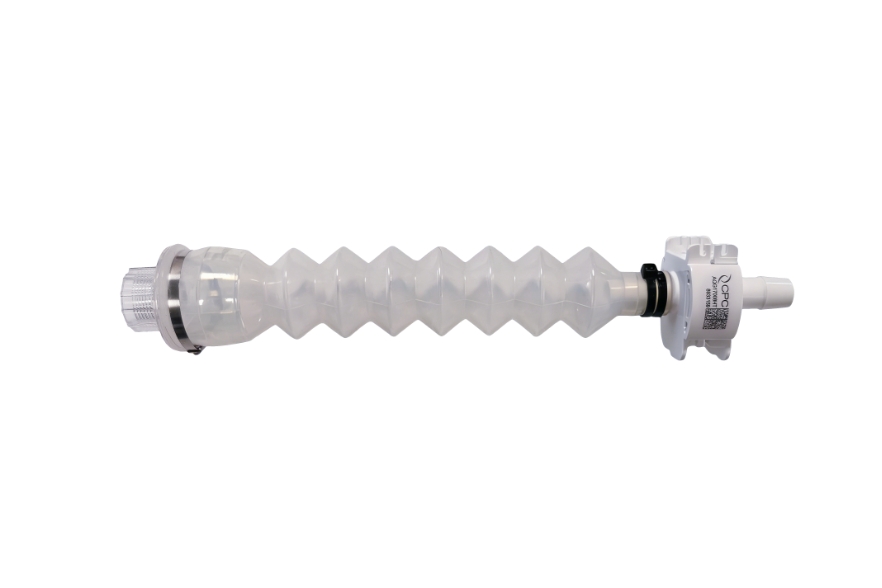

The Single-Use Electrode Sterile Connection & Bellows Kit from Applitech is designed to provide a secure and sterile interface between reusable pH/DO sensors and disposable bioreactor bags. lt ensures reliable process monitoring while maintaining aseptic conditions and protecting equipment-side moving components.

Key Components
1.Telescopic Silicone Bellows Tubing

Flexible, protective sleeve for sensor insertion mechanism. Covers moving parts toprevent contamination and protect against disinfectants.

2.Aseptic Quick Connectors

Enables sterile connection with single-use bag ports. Leak-proof and rapidassembly/disassembly.

3.Threaded Sensor Adaptors

Compatible with PG13.5 or 225 mm electrodes. Provides precise sensor positioningand secure attachment.

Features
1.Sterile Connection: Maintains aseptic barrier between reusable sensors and disposable bioreactor bags.

2.Flexible Bellows Design: Allows smooth sensor movement while covering mechanical components.

3.High Temperature Sterilization Compatibility: Resistant to autoclaving and steam sterilization (≤ 135 °C)

4.Biocompatible Materials: meet USP Class Vl standards.

5.Easy Installation & Replacement: Quick connect system simplifies setup and reduces downtime.

5.Broad Compatibility: Works with standard PG13.5 /225 mm electrodes and disposable bag ports.

Applications
1.Sterile Sensor Integration in Disposable Bioreactors

- Provides a sterile pathway and secure mounting for pH/DO sensors.

- Suitable for mammalian, microbial, and stem cell culture.

2.Supports Real-time Process Monitoring.

- Enables sensors to measure critical process parameters inside sterile single-use bags.

- Compatible with automated data acquisition and process control systems.

3.Flexible Applications from R&D to Production

Compatible with standard PG13.5/ 225 mm electrodes.

Suitable for research, pilot, and commercial production scales.

4.Equipment Protection & Contamination Risk Reduction

- Bellows cover moving components of the sensor mounting mechanism.

- Maintains equipment deanliness and protects against external contamination.

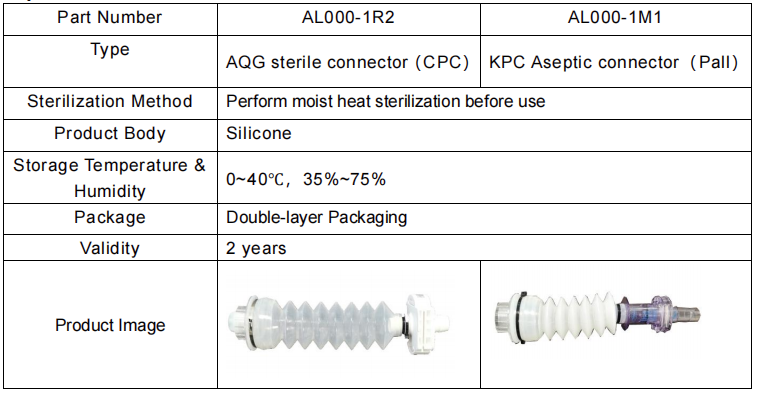

Specifications
