Product Overview

Key Components

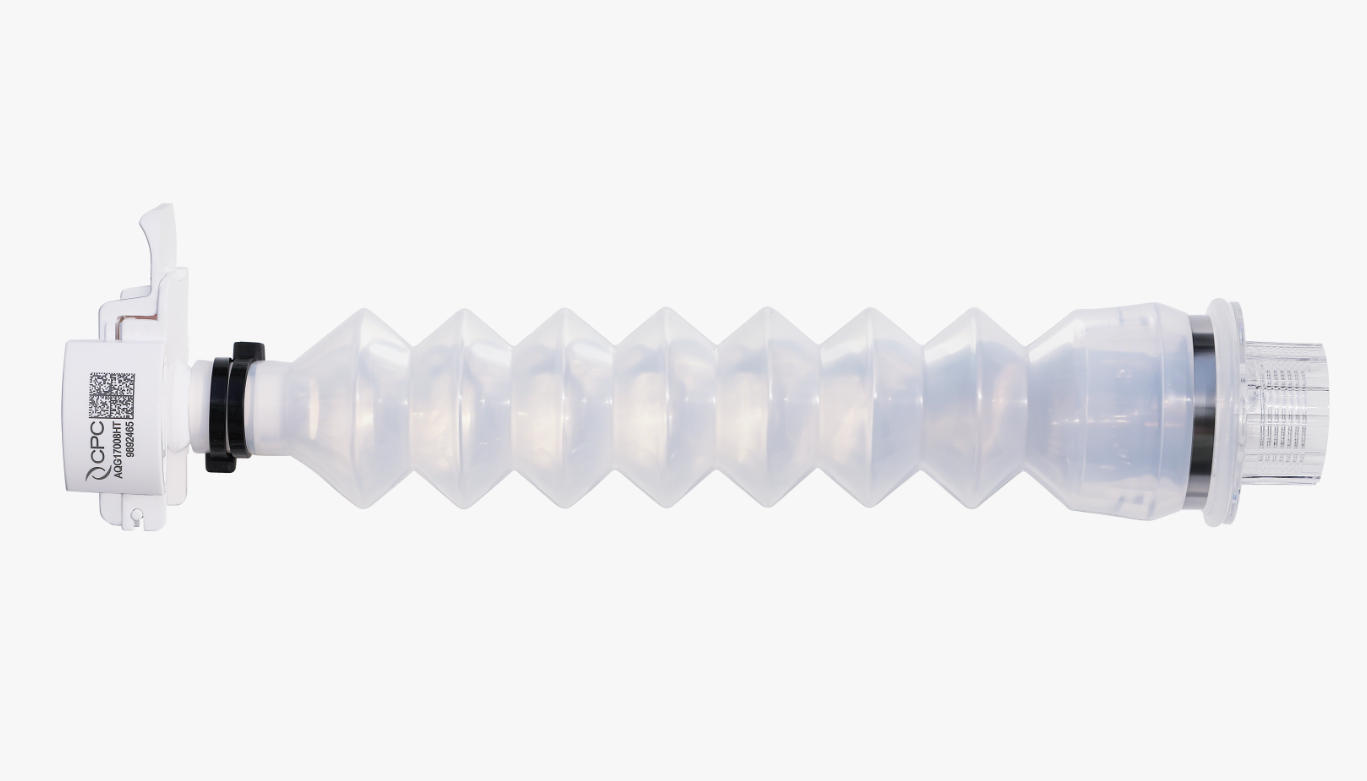

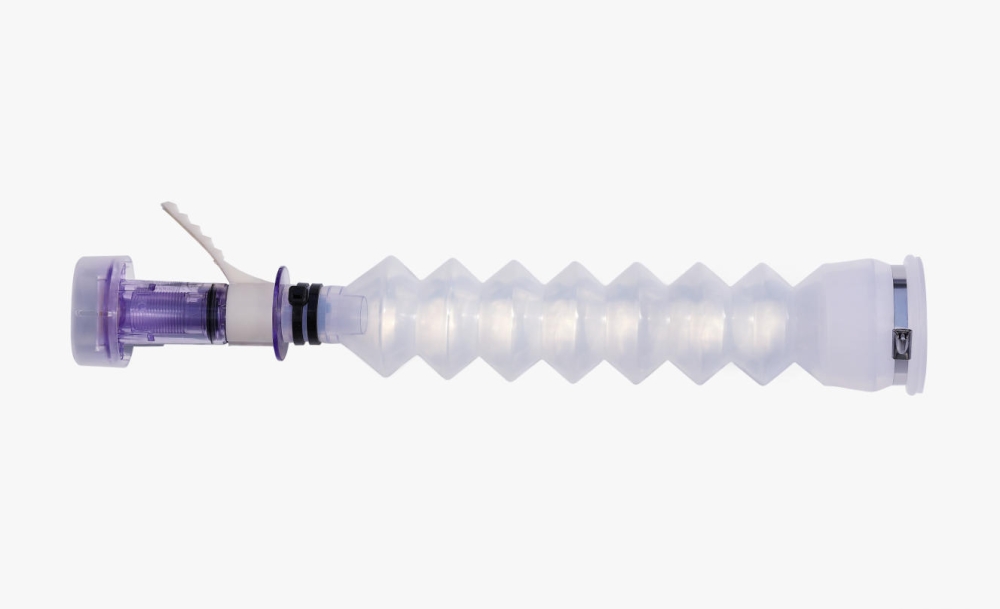

• Telescopic Silicone Bellows Tubing

Flexible,protective sleeve for sensor insertion mechanism .Covers moving parts to prevent contamination and protect against disinfectants.

• Aseptic Quick Connectors

Enables sterile connection with single-use bag ports.Leak-proof and rapid assembly/disassembly.

• Threaded Sensor Adaptors

Compatible with PG13 .5 or 225 mm electrodes.Provides precise sensor positioning and secure attachment.

Features

• Sterile Connection –Maintains aseptic barrier between reusable sensors and disposable bioreactor bags

• Flexible Bellows Design –Allows smooth sensor movement while covering mechanical components

• High Temperature Sterilization Compatibility –Resistant to autoclaving and steam sterilization (≤ 135 °C)

• Biocompatible Materials –meet USP Class VI standards

• Easy Installation &Replacement –Quick connect system simplifies setup and reduces downtime

• Broad Compatibility –Works with standard PG13 .5 / 225 mm electrodes and disposable bag ports

Applications

1. Sterile Sensor Integration in Disposable Bioreactors

• Provides a sterile pathway and secure mounting for pH/DO sensors

• Suitable for mammalian,microbial,and stem cell culture

2. Supports Real-time Process Monitoring

• Enables sensors to measure critical process parameters inside sterile single-use bags

• Compatible with automated data acquisition and process control systems

3. Flexible Applications from R&D to Production

• Compatible with standard PG13 .5 / 225 mm electrodes

• Suitable for research,pilot,and commercial production scales

4. Equipment Protection &Contamination Risk Reduction

• Bellows cover moving components of the sensor mounting mechanism

• Maintains equipment cleanliness and protects against external contamination

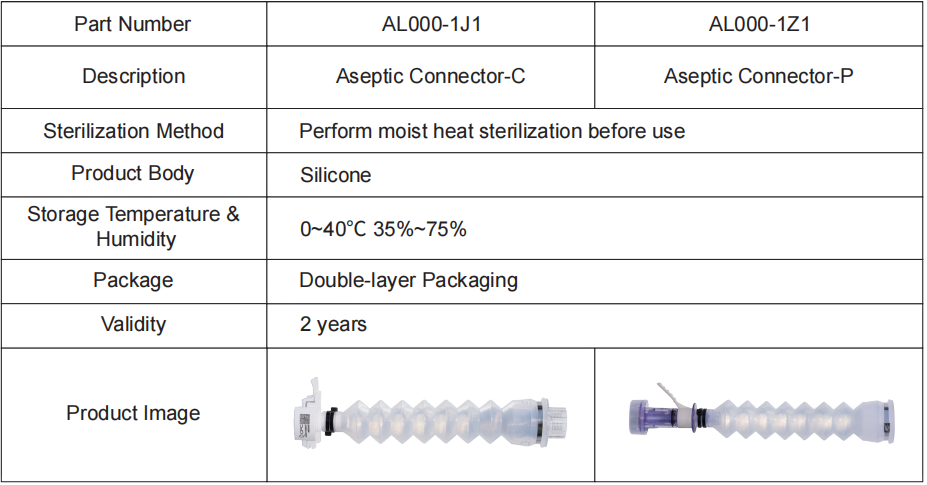

Specifications
