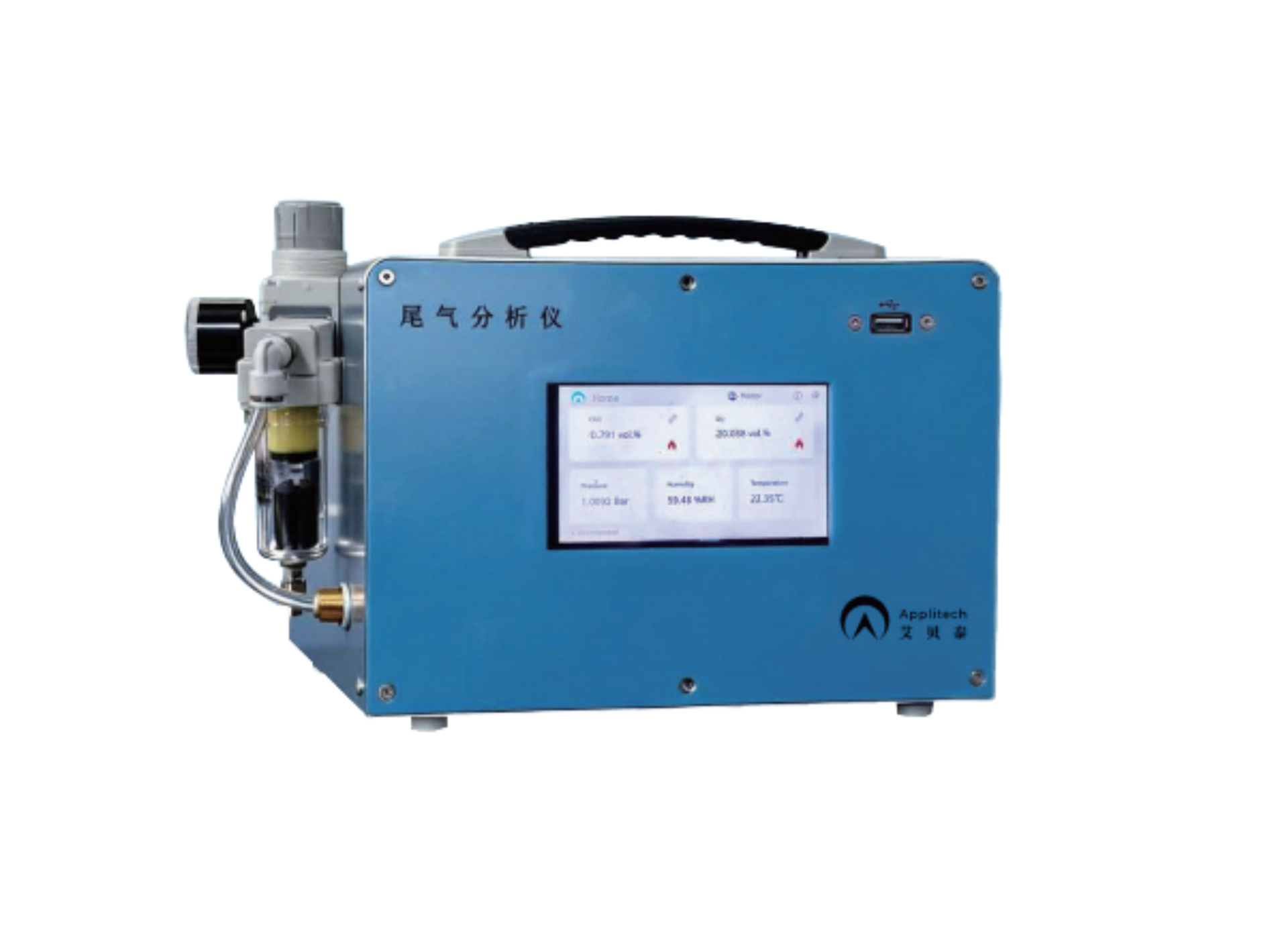

Applitech AbioB1000 Series Fermentation Off-Gas Analyzer
Integrated online monitoring of five parameters: CO₂、O₂ , temperature, pressure, and humidiy, with real-tme display on a 5.5 -inch touchscreen. Supports RS485 (Modbus-RTU) and dual-channel 4-20 mA outputs., providing continuous and reliable off-gas monitoring for bioprocesses.
Online Off-Gas Monitoring for Bioprocesses
Integrated online monitoring of five parameters: CO₂, O₂, temperature, pressure, and humidiy, with real-tme display on a 5.5 -inch touchscreen. Supports RS485 (Modbus-RTU) and dual-channel 4-20 mA outputs., providing continuous and reliable off-gas monitoring for bioprocesses.

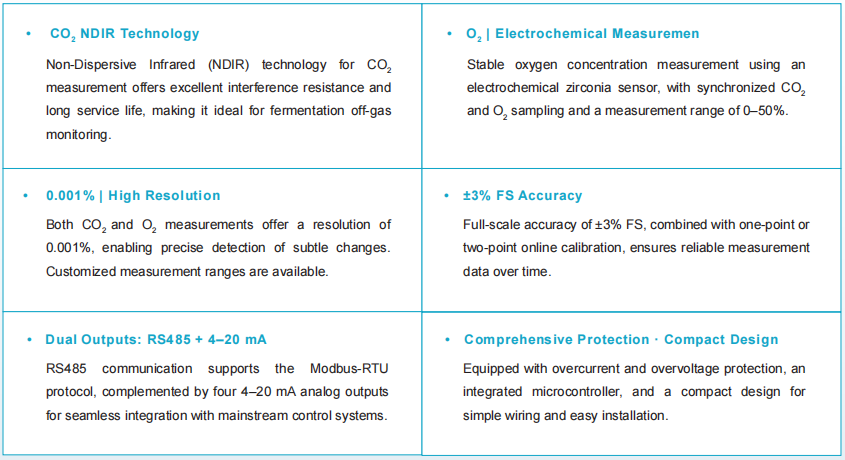

KEY FEATURES

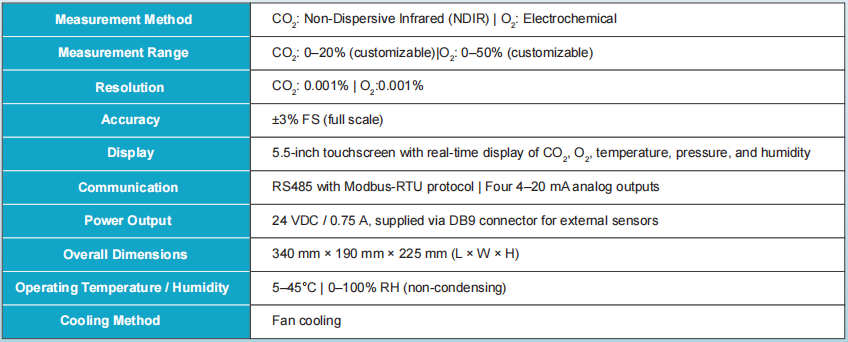

SPECIFICATIONS

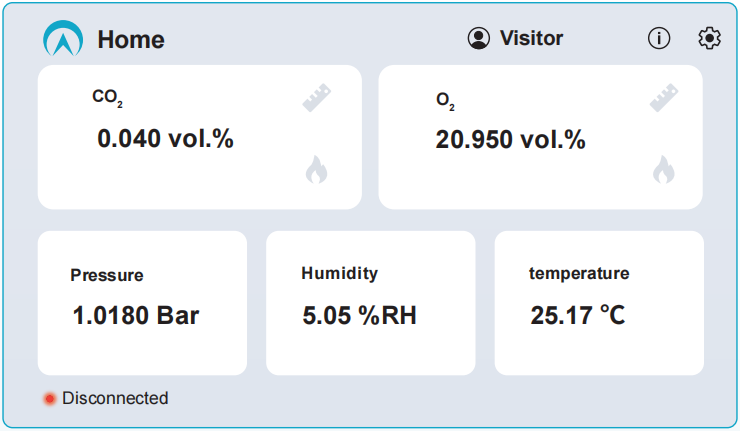

TOUCH INTERFACE
Five Parameters at a Glance, Full Visibility into Fermentation Status
Real-Time Five-Parameter Monitoring — Simultaneous on-screen display of CO₂, O₂, pressure, humidity, and temperature for clear, real-time visibility into fermentation status.
Online Calibration —Supports one-point calibration (ambient air)and two-point calibration (ambient air +calibration gas), with independent calibration for CO₂, O₂, and temperature.
Tiered Access Control — Multiple access levels (Visitor / Calibration / Installation / Admin) help protect calibration procedures and system settings.
Flexible Channel Mapping — Dedicated output channels for CO₂ and O₂ , with Channels 3 and 4 configurable to output analog signals for pressure,
humidity, or temperature.

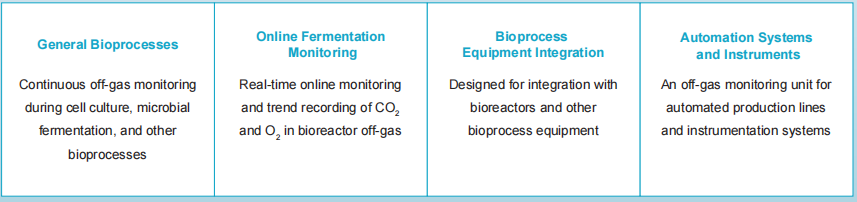

APPLICATIONS
